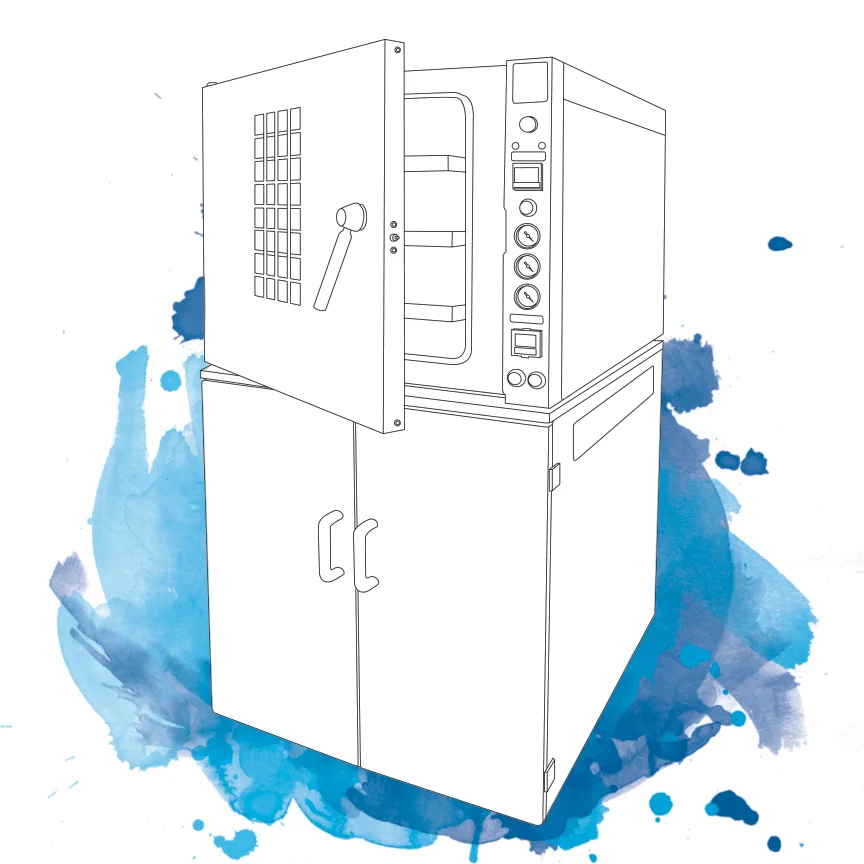

D10.3



The D10.3 - 3D Dye Sublimation System has been developed for  high production volumes. Create multiple cells to increase output.

The D10.3 can be run on Single or 3 Phase.

27 iPhone Cover/Cycle
27 cases every 15 minutes

No pre-processing
No post-processing



The D10.3 can operate with 3 vacuum frames at one time, frame size 562mm x 390mm x 40mm deep. The frame depth is determined by the depth of the part to be decorated.


DIMENSIONS

WEIGHT

POWER REQ

POWER CONSUMPTION

VACUUM FRAME SIZE

VACUUM FRAMES REQ

CYCLE TIME

VACUUM PUMP SIZE

PRODUCTION SPACE REQ

1,557mm high x 766mm wide x 811mm deep

174 kgs

32 Amp 230v - Single or 3 Phase

10KW

562mm x 390mm x 40mm

3 single sided per cycle, plus 3 spares

9-13 minutes (subject to substrate)

3 Vacuum Pumps.

40m2

OPTIONAL EXTRAS

Deeper Single Sided Vacuum Frame - Max depth 65mm
Double Sided Vacuum Frame
Bespoke - dependent on parts being decorated
Transformer will be supplied where necessary
