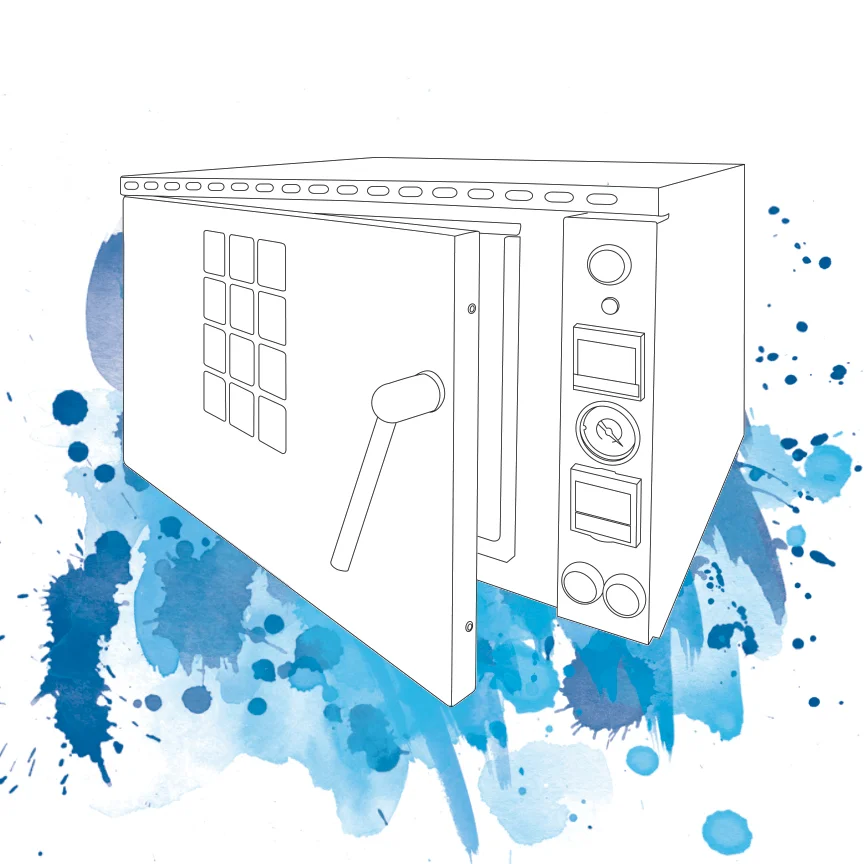

D10.1



Whether you wish to produce small volumes, concepts or prototype designs the D10.1 -  3D Dye Sublimation  System is the right machine for you.  Add units to increase output. It’s flexible.

The D10.1 not only allows you to decorate one off designs but also to replicate what can be produced in mass production.

The D10.1 could be used within stores for instant personalization requirements.

4 iPhone Cover/Cycle
4 cases every 8-10 minutes

No pre-processing
No post-processing



The D10.1 operates 1 vacuum frame at a time, frame size 375mm x 300mm x 40mm deep. The frame depth is determined by the depth of the part to be decorated. We support your needs through production. We are behind you.


DIMENSIONS

WEIGHT

POWER REQ

POWER CONSUMPTION

VACUUM FRAME SIZE

VACUUM FRAMES REQ

CYCLE TIME

VACUUM PUMP SIZE

PRODUCTION SPACE REQ

371mm H x 555mm W x 488mm D

26kgs

13 Amp 230v - Single Phase

2.5KW

375mm x 300mm x 40mm

1 x single sided per cycle, plus 1 spare

9-13 minutes (subject to substrate)

260mm high x 170mm wide x 360mm deep

25m2

OPTIONAL EXTRAS

Deeper Single Sided Vacuum Frame - Max depth 80mm
Bespoke - dependent on parts being decorated
Transformer will be supplied where necessary
